For results with maximum precision

Do you need a quick, precise check on prototypes, initial samples or series production components?

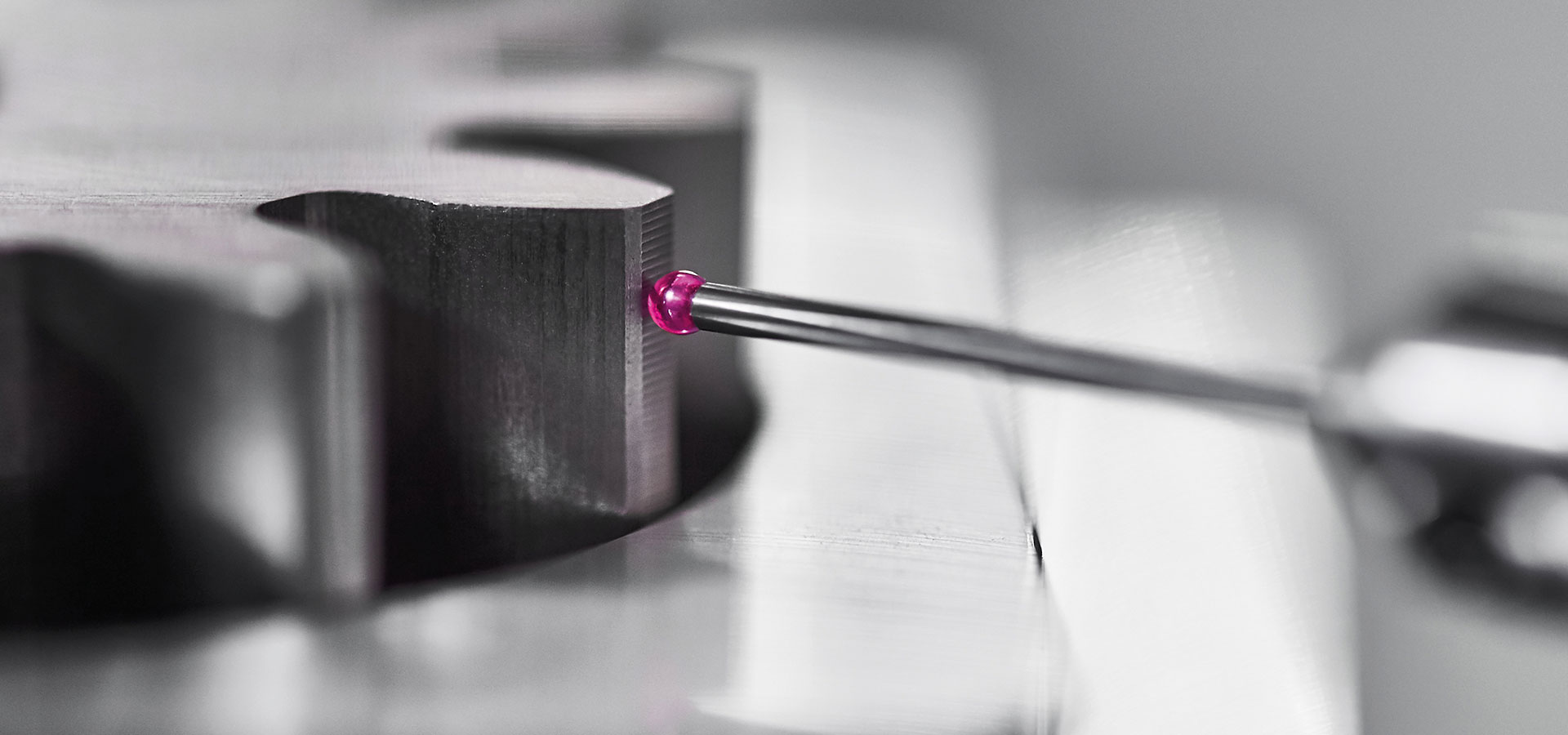

For the precise analysis of prototypes, initial samples and series production components, we use tactile metrology. Here a stylus makes contact with the component at each point and in this way provides information about shape and position. This is the most accurate method in industrial metrology.

+49 7022 2796-680 info@qa-group.com

Tactile metrology for precise measurements

Tactile metrology – maximum precision for the highest requirements

3D coordinate metrology is used wherever components are to be measured precisely and only very small tolerances are allowed. Typical for tactile metrology are random or hundred-percent quality control in vehicle manufacture, machine tool and machinery manufacture, electrical engineering, plastics technology, precision mechanics or medical technology. Even large batches are suitable if, for instance, only a few features need to be inspected.

Fast, reliable
measurement results

  • Preparation and validation of measuring programs: offline programming for ZEISS CALYPSO and Mitutoyo MCOSMOS
  • Interpretation of drawings and development of measuring strategies
  • Geometric dimensional inspection: highly precise measurement of standard geometries and freeform surfaces
  • Geometric dimensioning and tolerancing (GD&T): measurement and analysis of roundness, cylindrical shape, perpendicularity, parallel alignment, concentricity, thickness deviation and much more
  • Surface and contour measurements: reliable results for radii, chamfers, contours, roughness, ripple, angles, recesses and length tolerances
  • Gearwheel measurement: exact measurement of internal and external gear teeth, including evaluation in accordance with the standards, with and without rotary table, e.g. gearwheels with helical or spur teeth, toothed racks, shafts, worm gears or rotors
  • Surface and line shape: nominal-actual comparison with CAD model
  • Complete initial sampling: preparation of initial sample test reports according to drawing requirements (e.g. VDA and PPAP)
  • Jig manufacture: CAD design of measurement fixtures, production gauges, gauges for incoming goods and much more – from planning to realisation
  • Mobile ESD protection zone for the inspection of components sensitive to electrostatic

Added value at quality analysis

Speed

Whether individual dimensions or serial measurements with large quantities: you receive precise measurement results from us quickly, even at short notice.

Quality

Excellent know-how, extensive experience and a high-end range of equipment guarantee high-quality measurement results.

Range of equipment

The right measuring machine is available for every measuring task. We rely on systems from ZEISS, Mitutoyo and GOM.

Accreditation

The accreditation of our inspection methods and air-conditioned measuring rooms signifies for you certainty, dependability and objectivity.

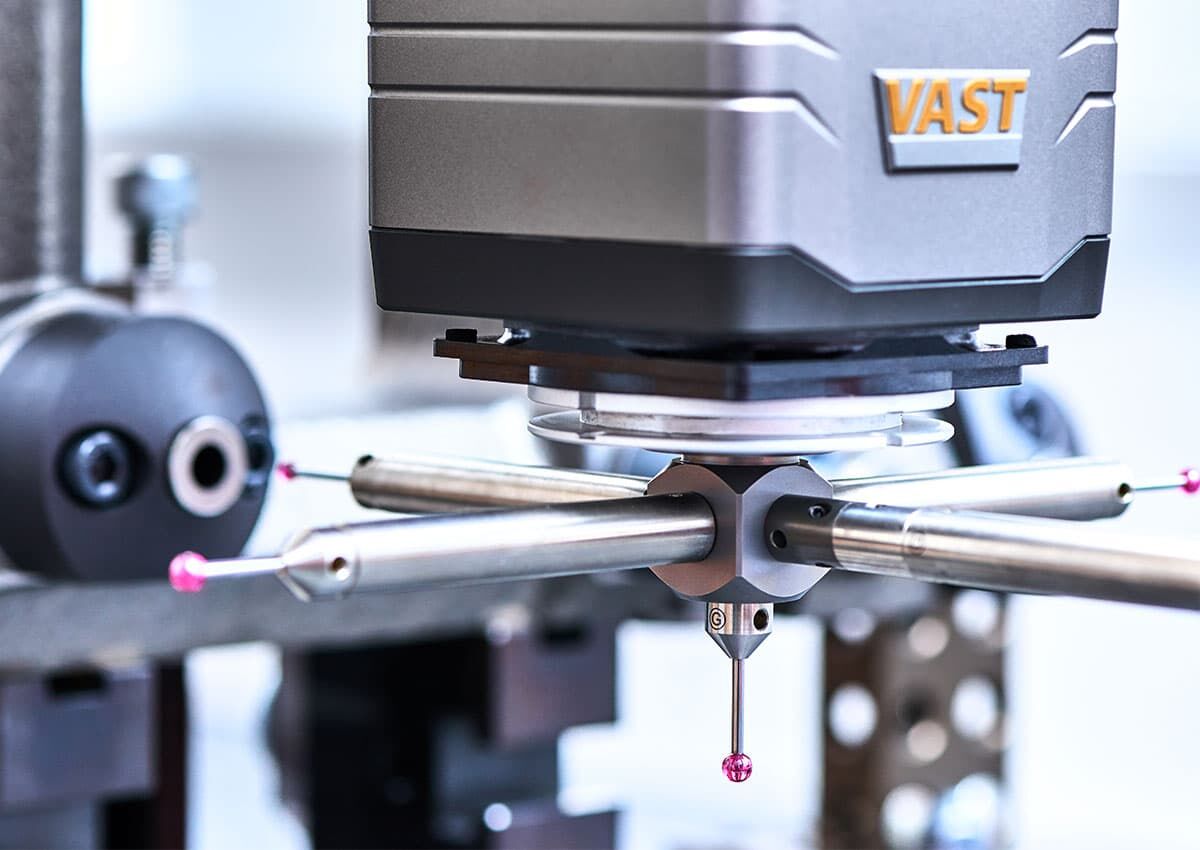

Tactile multi-sensor coordinate measuring machine from ZEISS

Technical equipment

Due to our large range of equipment, we can offer you measuring services for very small parts up to large bodywork parts and high quantities. Our comprehensive range of equipment includes nine tactile coordinate measuring machines from ZEISS (7x) and Mitutoyo (2x) and one semi-automated measuring station from Mahr. As a test laboratory accredited in accordance with DIN EN ISO/IEC 17025, we have accredited measuring rooms with various climate zones as well as ESD protection zones for the measurement of components susceptible to electrostatic.

Our maximum measuring volume is x=1200, y=3000, z=1000 mm. The maximum component weight is 3 metric tons.

During the preparation of our measuring programs we use the following software: ZEISS Calpyso, ZEISS GEAR Pro, Mitutoyo MCOSMOS and MarWin.

.

With extensive experience, excellent 3D coordinate metrology and sound expertise, our experts obtain the best from every analytical method so that you can rely on excellent measurement results.

+49 7022 2796-680 info@qa-group.com

DAkkS accreditation according to DIN EN ISO/IEC 17025

Accredited test laboratory for industrial metrology

Our measurement methods for components of metallic and non-metallic materials, plastics and organic materials are accredited by Deutsche Akkreditierungsstelle GmbH (DAkkS) in accordance with DIN EN ISO/IEC 17025. Furthermore, all our other specialist areas have also been accredited.

You can read more about the advantages our accreditation offers you here:

Find out more

Frequently asked questions about tactile metrology

What are the differences between the sensors for tactile measurement?

In principle a differentiation is made between switching and measuring systems. The former are in principle based on the electro-mechanical principle. Here a trigger signal is sent to the coordinate measuring machine as soon as the stylus tip makes contact with the measurement object, for example a component. The coordinates from the measuring machine produce a measurement point.

Measuring sensors are state-of-the-art. These sensors have distance measuring systems, for example inductive sensors in all three axes. If the stylus tip makes contact with a test piece, the tip is deflected in one direction by the test piece. The magnitude of this deflection is determined via the distance measuring systems. The coordinates from the sensor are then superimposed on the coordinates from the coordinate measuring machine such that a measurement point can be calculated.

Is it necessary for the stylus to withdraw and make contact again at every measurement point?

No, this action is not necessary with our modern coordinate measuring machines. Today it is standard that the stylus moves tangentially over the surface of the measurement object. In this way not only are various measurement points acquired quickly, the surface of the item inspected can be acquired along the entire path covered by the sensor

Is it possible to combine tactile and optical measurement methods?

Yes, this combination is possible without problems. Our multisensor coordinate measuring machine combines the advantages of both measurement methods. For example, with the aid of optical metrology an analysis without contact with the surface of an item inspected can be undertaken that is supplemented by the tactile sensor, for instance at difficult to access points on complex structures that remain closed to the white-light sensors. Here the measurement results are depicted in a common coordinate system which permits the common evaluation of all data. However it is important to note: although tactile sensors can supplement optical sensors, they can never improve their accuracy. The measurement result does not therefore become any more precise.

What are the advantages of tactile metrology?

For many measuring tasks, tactile measurement is still the first choice - and that for good reason.

Tactile metrology - maximum precision

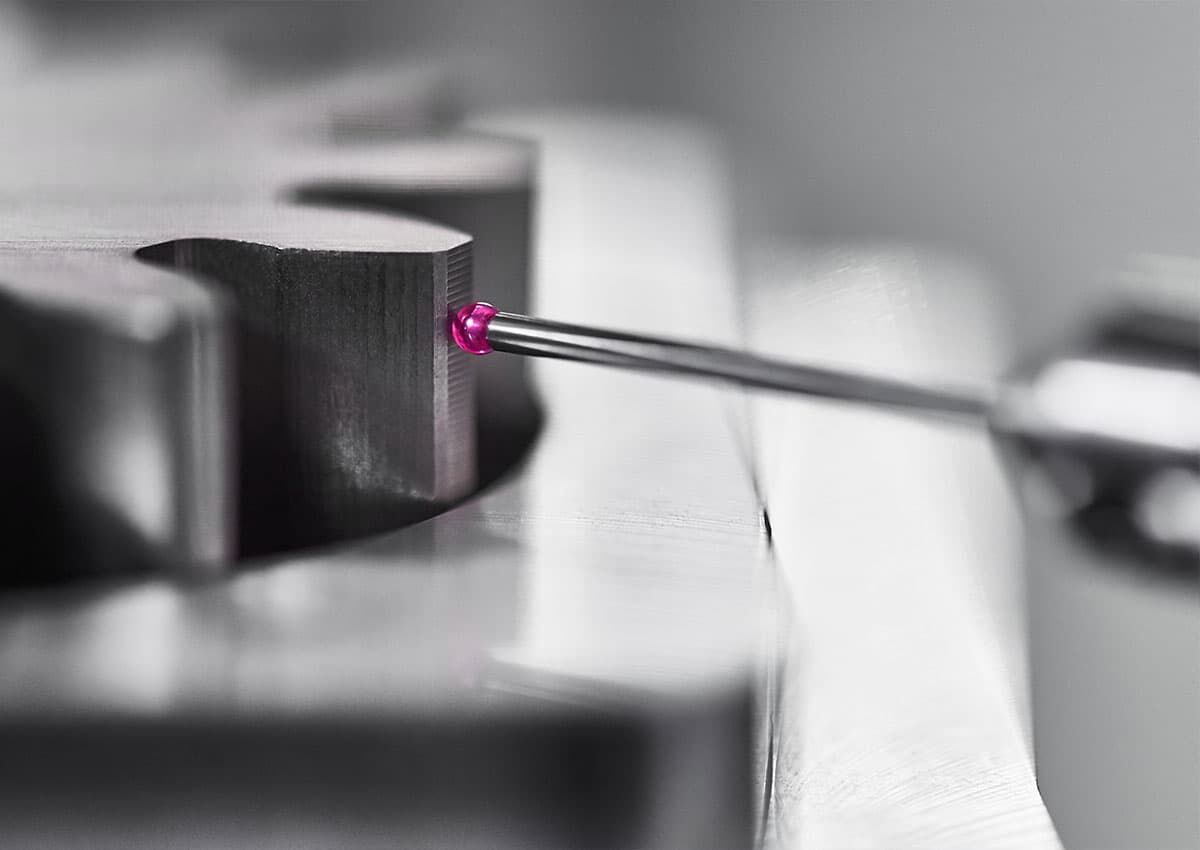

With their highly precise styli, our coordinate measuring machines are able to undertake measurements with accuracies in the range of one thousandth of a millimetre. This is significantly more accurate than optical measurement methods with depiction accuracies in the range of "only" hundredths of a millimetre. As such tactile metrology is suitable above all for the inspection of workpieces on which only the smallest manufacturing tolerances are acceptable and the deviations during the measurement must be correspondingly low.

Analysis of reflective surfaces without pretreatment

Items with a reflective, high gloss or transparent surface can still be a challenge for optical sensors. This is not the case for tactile metrology. Tactile metrology can provide precise results on demanding surfaces without the need for pretreatment with a scanning spray or other work steps. It is also possible to measure areas of a workpiece that are closed to optical sensors due to their position.

What are the disadvantages of tactile metrology?

Tactile measurements are excellently suited to the determination of numerous features on an item inspected, however they also have disadvantages compared to optical measurement methods. Weighing up these advantages and disadvantages can be a demanding task. Thanks to our extensive experience with a very wide range of materials, surface geometries, etc. we can provide you with extensive advice on this topic. In this way you receive the measuring service that best meets your requirements..

Meeting the highest requirements take time

The biggest advantage of tactile methods is their precision, however this precision also has its price. Sampling a large number of individual measurement points takes time. This situation means comprehensive quality control in series production is still a challenge. Nevertheless, if an accuracy in the micron range is required in these areas, checks on random samples can be an alternative or the check can be restricted to fewer measurement points.

Contact is essential

Unlike optical methods, with tactile sensors it is necessary for the stylus to make contact with the measurement object. This action can be a problem on very delicate surfaces. In such a situation, the benefits and risks of a tactile measurement must be carefully considered. Thanks to our highly accurate 3D scanners, increasingly we can switch to optical measuring instruments in such cases.

QUALITY ANALYSIS

THE RIGHT PARTNER

FOR TACTILE METROLOGY

What can we measure and analyse for you?
We would be pleased to advise you about the numerous possibilities and combined analytical methods. The goal: the best, most cost-effective and most efficient analysis of your component.


Call us, we look forward to hearing from you!
