3d measuring services – quick, precise and efficient

Do you want to use your capacity for other work and need a quick, efficient solution for your industrial measuring task? Capitalise on the extensive metrological know-how of Quality Analysis – even at short notice: capacity in terms of both personnel and machinery is available to you here quickly and dependably.

Our goal is a perfect and at the same time cost-effective measurement and analysis result.
A result that helps you to answer open questions and tackle problems. For this purpose, we combine, as required, tactile, optical and CT inspection technology – depending on the task and requirement.

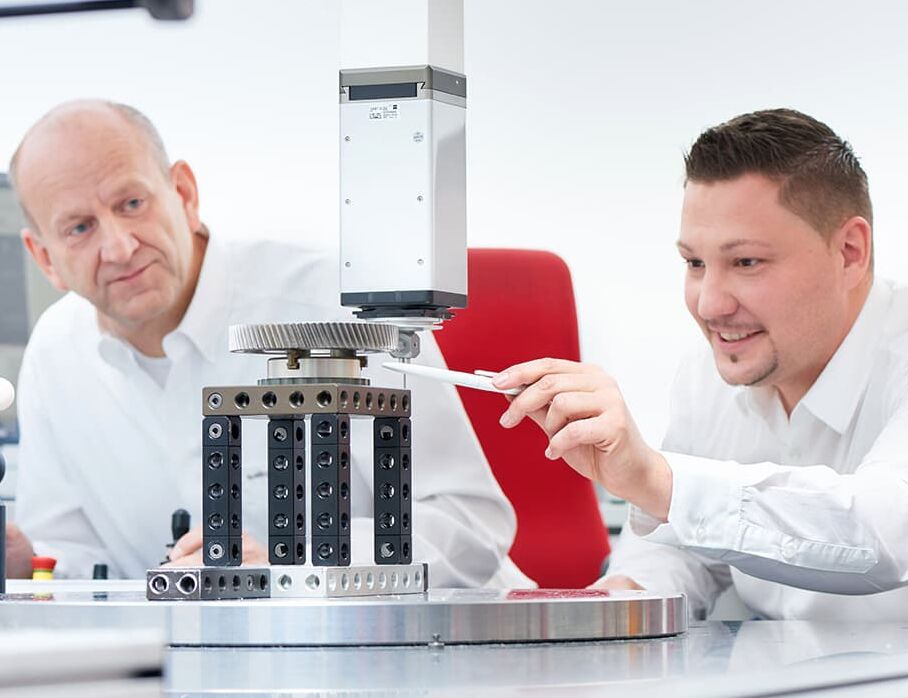

Fast, reliable
measurement results

  • Prototype, initial sample and serial inspections
  • Preparation and validation of measuring programs
  • Interpretation of drawings and development of measuring strategies
  • Measurement of standard geometries, freeform surfaces, geometric dimensioning and tolerancing (GD&T)
  • Nominal-actual comparisons with CAD-CAM data
  • Gearwheel measurement (measuring room quality class 2)
  • Surface and contour measurement
  • Initial sampling according to drawing requirements (VDA/PPAP)
  • Measuring equipment monitoring using CMM checks and gauges
  • Jig manufacture

Applications for industrial metrology

Highly precise measurement and inspection methods
by application

Added value at quality analysis

Speed

Whether individual dimensions or serial measurements with large quantities: you receive precise measurement results from us quickly, even at short notice.

Quality

Excellent know-how, extensive experience and a high-end range of equipment guarantee high-quality measurement results.

Range of equipment

The right measuring machine is available for every measuring task. We rely on systems from ZEISS, Mitutoyo and GOM.

Accreditation

The accreditation of our inspection methods and measuring rooms signifies for you certainty, dependability and objectivity.

With extensive experience, excellent 3D coordinate metrology and sound expertise, our experts obtain the best from every analytical method so that you can rely on excellent measurement results.

+49 7022 2796-680 info@qa-group.com

DAkkS accreditation according to DIN EN ISO/IEC 17025

Accredited test laboratory
for industrial metrology

Our measurement methods for components of metallic and non-metallic materials, plastics and organic materials are accredited by Deutsche Akkreditierungsstelle GmbH (DAkkS) in accordance with DIN EN ISO/IEC 17025. Furthermore, all our other specialist areas have also been accredited.

You can read more about the advantages our accreditation offers you here:

Find out more

Precise results thanks to the latest technology

Precise measurements are only possible with high-quality equipment. For this reason, we at QA only use the latest measuring instruments and systems from the renowned manufacturers Zeiss, Mitutoyo and GOM. However, advanced sensors, high-quality components and the careful preparation of the measuring system in our range of equipment are only half the story. In the end it is our experts who, with their specialist skills and their experience, are able to meet all the challenges from our customers.

Applications for industrial metrology

No branch of modern industry can do without highly precise measurement and inspection methods. Industrial metrology checks prototypes and guarantees the quality of ongoing production processes.

Analysis areas - Automotive sector
© Vaceslav Romanov - stock.adobe.com

AUTOMOTIVE

Tactile and optical metrology are essential for the highly precise inspection of standard geometries, freeform surfaces as well as geometric dimensioning and tolerancing on shafts, gearwheels and housing parts in the drive train. In battery technology, optical metrology is used for the 3D digitisation and measurement of individual battery components as well as battery trays. Using 3D computed tomography, it is even possible to digitise and non-destructively analyse individual battery cells.

More...

Analysis for medical technology
© Monstar Studio - stock.adobe.com

Medical technology

Modern medical technology does astounding things to keep people healthy. For this achievement to be possible, extreme care is required during the production of medical equipment. The measurement of roughness and the depiction of surface structures as well as geometrical dimensional inspection are imperative for ensuring the safety of instruments, implants and stents.

More...

Analyzes of compliance with safety standards in the plastics industry
© MaciejBledowski – stock.adobe.com

Plastics industry

During the manufacture of injection moulded parts, industrial metrology ensures the quality of production processes and products by means of the highly precise measurement of standard geometries, freeform surfaces as well as geometric dimensioning and tolerancing. In addition, nominal-actual comparisons between design and workpiece based on CAD data are possible. During component qualification, the permissible distortion on the parts installed in the end-product is determined before the end-product is actually assembled.

More...

Frequently asked questions

What is industrial metrology?

Industrial metrology, or production metrology, refers to all measuring activities that are necessary during the industrial production of a product. Here the focus is often on parameters such as dimensions and geometry, however the characteristics of the material from which a workpiece is made can also be analysed. The requirements on the accuracy of the measurement results are significantly higher than in everyday applications. For example, during the milling of a cylinder head a precision of a few hundredths of a millimetre is required; distances in the range of a few nanometres can be crucial on printed circuit boards. The result is, of course, completely different requirements on the measurement methods.

What is tactile metrology?

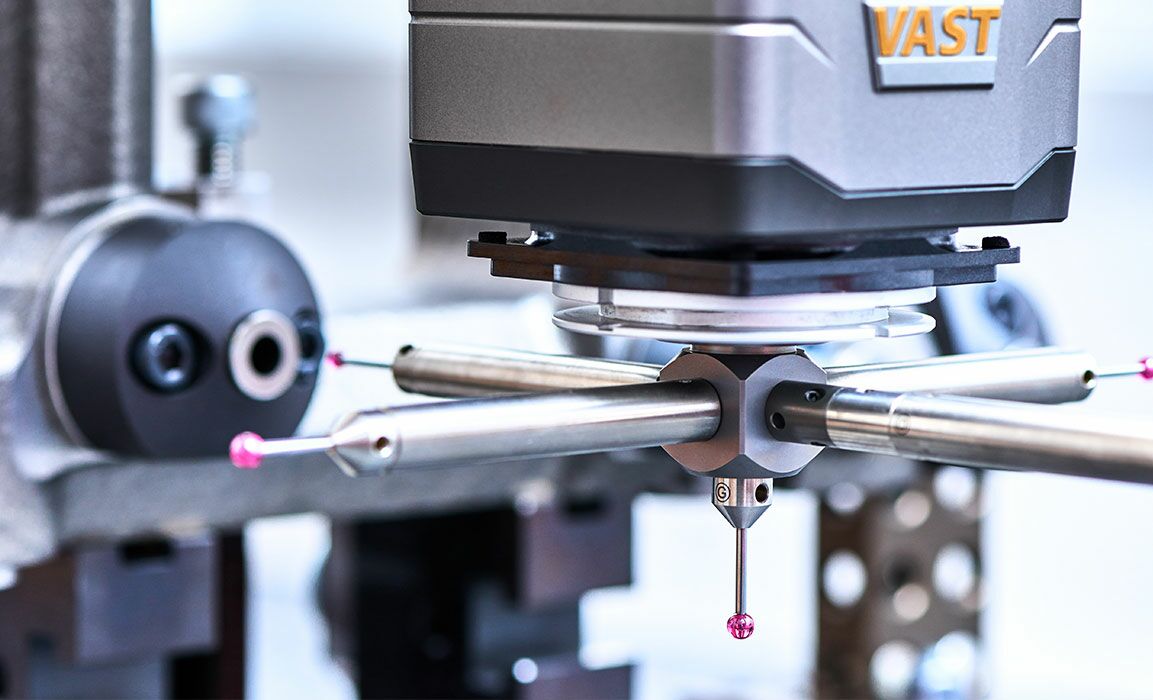

A component is scanned mechanically during a tactile measurement. Expressed in lay terms, the measuring machine "feels" the surface of the component using its sensors. Here, for example, surfaces and contours can be measured or the roughness of the material checked. Tactile metrology is used in particular if individual inspection features on components are to be measured precisely and only very small tolerances are allowed, both on random samples and for high quantities.

What is optical metrology?

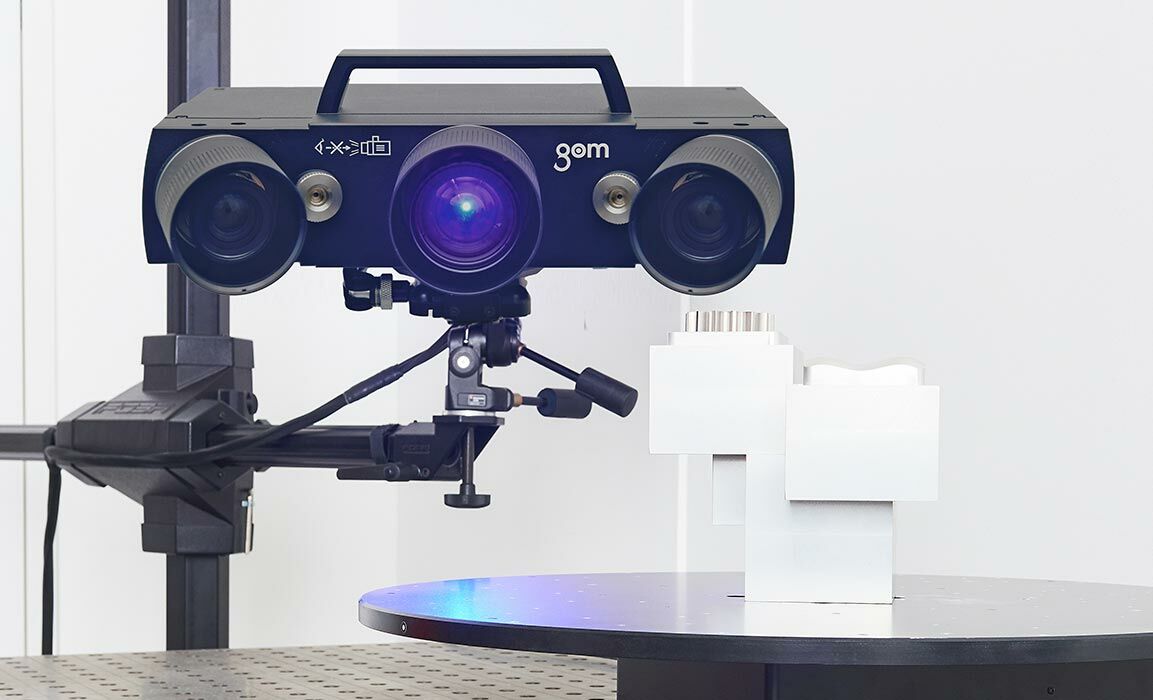

Optical metrology is suitable for the quick acquisition of the external geometry of a test piece. With this type of inspection, a test piece is first digitised with a high point density by a 3D scanner using its high-quality optical components and then analysed. Because these processes are without contact and quick, they are particularly suitable for ongoing quality control during production and process control.

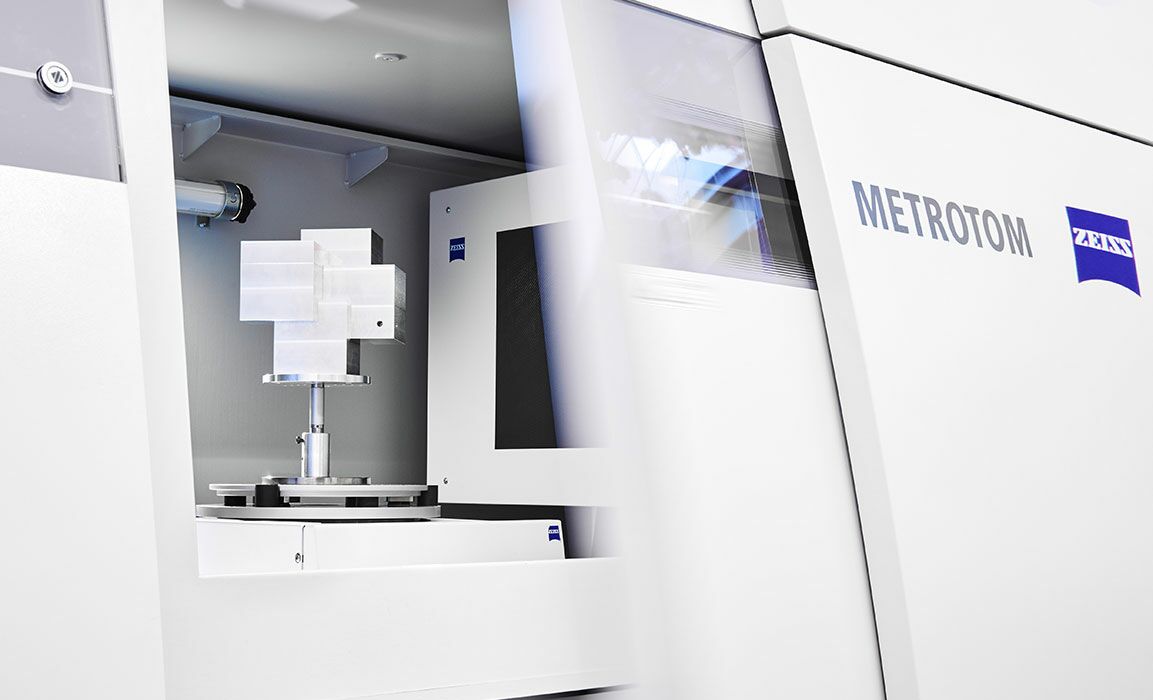

How does the "non-destructive analysis" of a component work?

Non-destructive analysis is an inspection technique during which a component is analysed without affecting its structural integrity. The component inspected is not withdrawn from the manufacturing process and can be further processed if the inspection is passed. Industrial CT makes it possible for us to provide statements about porosity, defects, cracks, wall thicknesses and nominal-actual comparisons. Industrial computed tomography can also be used in areas in which optical and tactile measurement is not possible.

What is the difference between 2d x-ray inspection and 3d computed tomography?

During 2D X-ray inspection, the analysis is undertaken based on high-resolution X-ray images in which even details in the nanometre range can be identified. If a digital copy of a test piece is required or volumes are to be measured, three-dimensional methods such as 3D computed tomography are used. Technologies such as 3D nano-computed tomography are used for particularly small, complex test pieces.
