ISO GPS – briefly explained

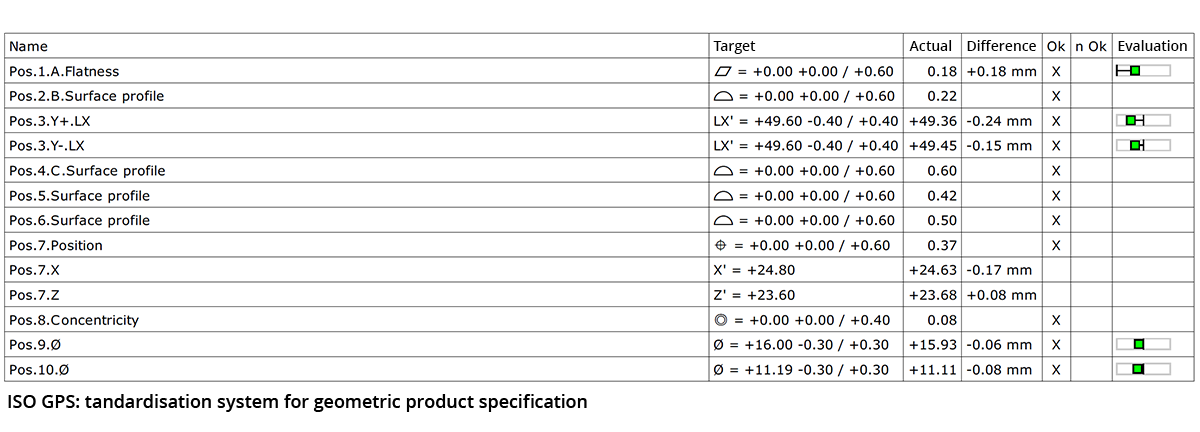

ISO GPS is a system of standards for geometric product specification (GPS). The standards it contains define the geometric specifications of products, including tolerances for shape, orientation, position and run. The aim of the ISO GPS system is to provide uniform and precise methods for geometric product specification that can be applied worldwide.
What exactly is specified in the ISO GPS?
The ISO GPS standards are used to define geometric properties such as length dimensions, shape and position tolerances, surface tolerances, radii and angles. In addition, there are many other factors that are specified by ISO GPS: It specifies requirements for all areas of application and product stages - from design, through drawing creation, to production, the testing and measuring technology to be used, as well as its calibration and evaluation of the data.
Why is ISO GPS so important?
ISO GPS was introduced to standardize manufacturing processes at an international level. It represents a coherent and comprehensive system of standards for the geometric specification of products. On the one hand, this enables internationally standardized communication between designers, manufacturers and quality inspectors. On the other hand, this system helps to improve product quality and reliability. This is because it not only defines precise tolerances for shape, orientation, position and run, but also contains specific requirements for the verification of a product, such as the permissible measuring equipment and information on its calibration.
Fewer manufacturing errors and easier communication
This leads to improved compatibility and interchangeability of components and products across national borders, which is particularly important in globally networked supply chains and international cooperation in manufacturing. ISO GPS also helps to minimize manufacturing errors and ensures that the end products meet the requirements and specifications.
Quality Analysis supports you with quality control

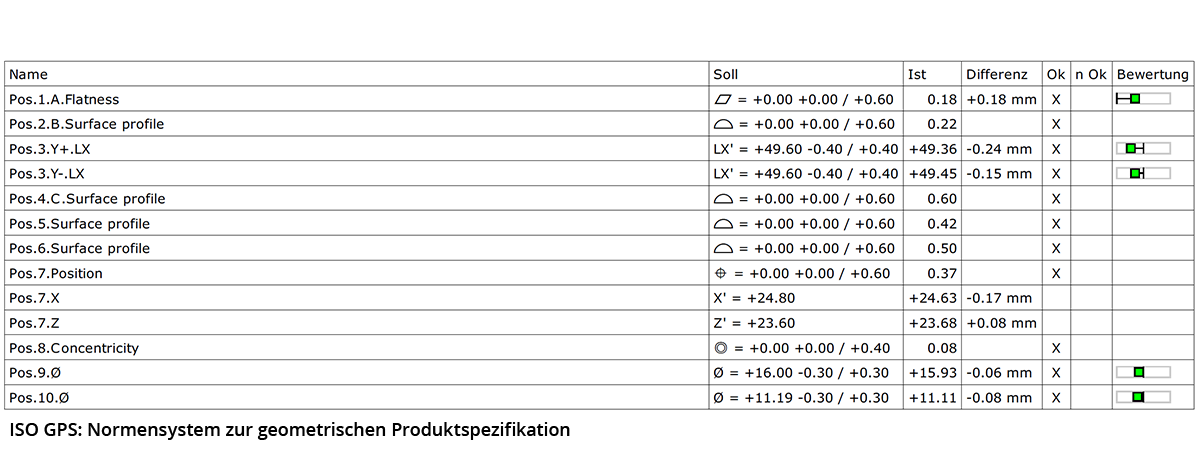

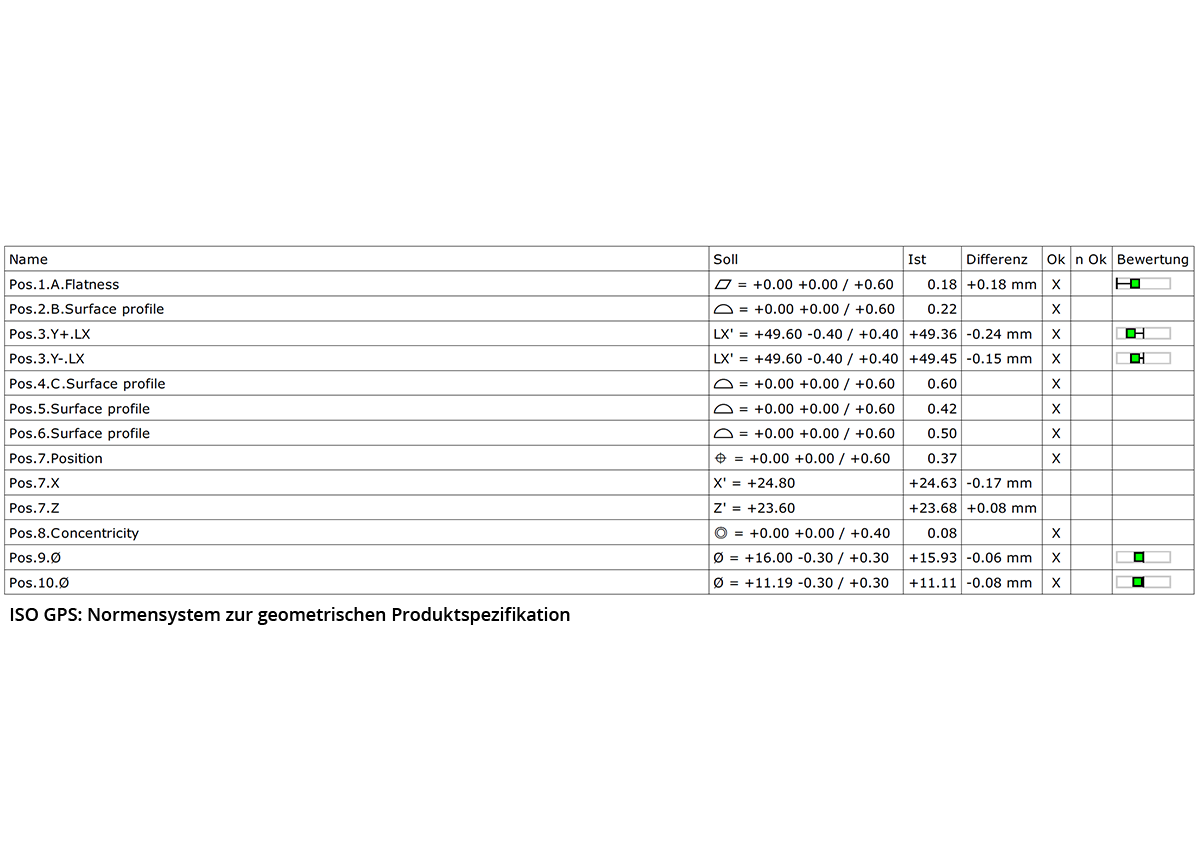

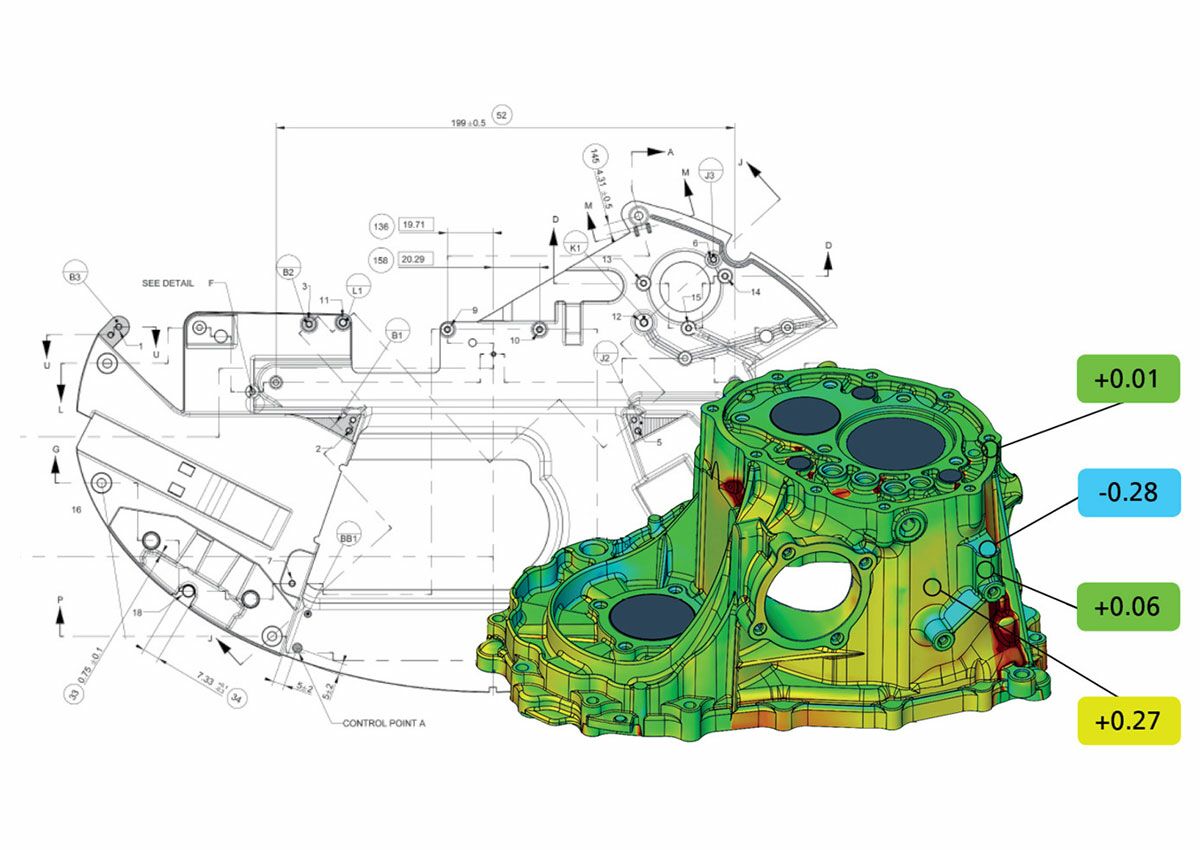

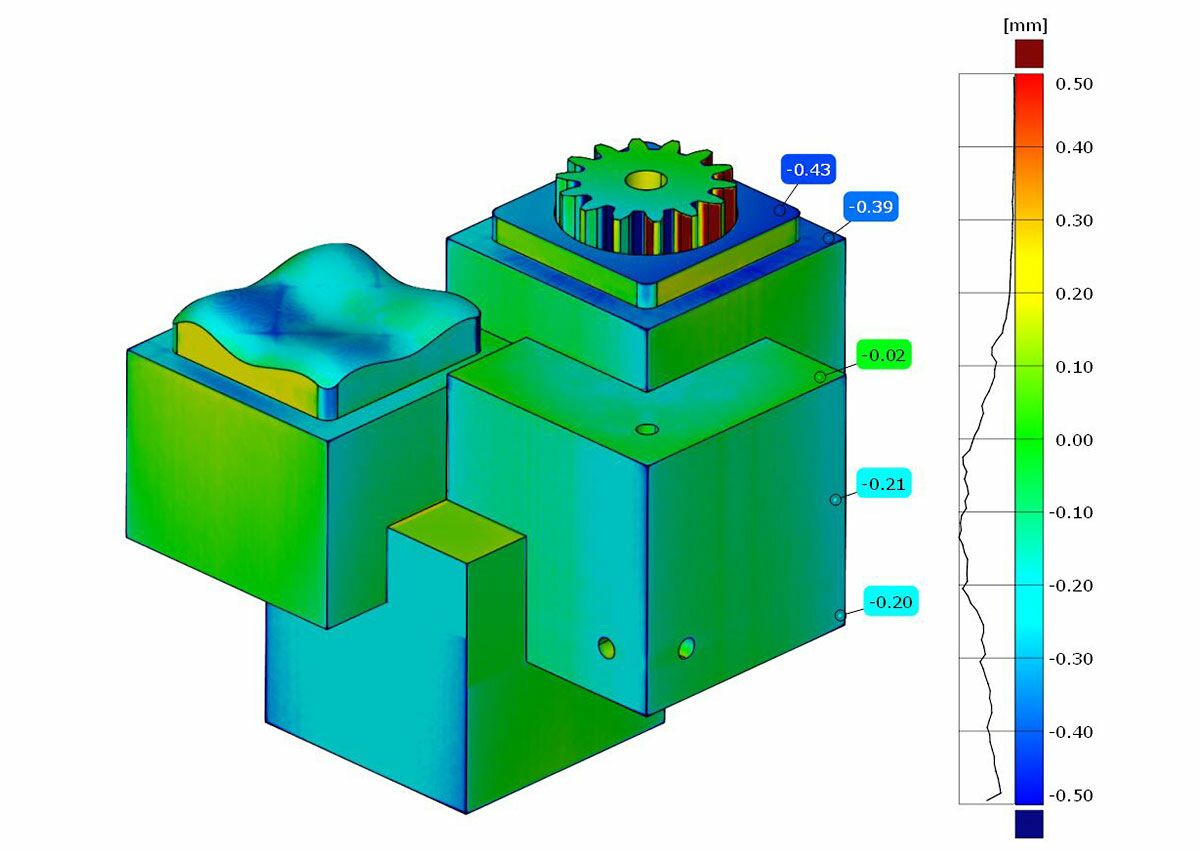

At Quality Analysis, we take over the necessary quality controls for you in order to monitor and ensure compliance with the geometric product specifications. With our modern machinery, we are able to meet any challenge in the field of product monitoring, including tolerance testing. Our experts use industrial computer tomography as well as optical metrology and tactile measurement technology to take precise measurements with an accuracy of a few thousandths of a millimetre. If required, we combine all three methods - enabling us to correctly record even the most demanding external and internal geometries.
Not sure which method is best suited to your requirements? Simply contact us and our experts will be happy to advise you individually - without any obligation, of course.
ISO GPS BASICS: Matrix Model, DIN ISO 8015, and fundamental Principles
The ISO-GPS system is based on a multitude of interconnected standards and rules. To unambiguously define geometric product specifications, the matrix model, chains of standards, and fundamental principles work together. The following concepts form the foundation for standards-compliant tolerancing, inspection, and interpretation of technical product requirements.
The Structure of the ISO GPS - The Matrix Model
The ISO GPS matrix model forms the central structure of the ISO GPS standards system and provides transparency within the Geometric Product Specification. It organizes the various ISO GPS standards along two axes: the specification axis and the verification axis. While the specification axis encompasses standards for defining geometric requirements and tolerances, the verification axis groups together the standards for measurement, testing, and conformity assessment.
This systematic structure highlights the relationships between individual GPS standards. It provides users with guidance to select the standards relevant to their tasks and to implement geometric product specifications in accordance with the standards throughout the entire product development process. As a result, the matrix model contributes significantly to consistent interpretation, reliable verification, and higher product quality.
The Chain Links: Accuracy and Quality Through Interdependencies
The concept of “chain links” describes the close interconnection of the individual ISO GPS standards within the GPS standards system. Each standard fulfills a specific function in the description, interpretation, or verification of geometric product specifications and is linked to other standards. It is only through the interaction of these chain links that a consistent and unambiguous definition of technical requirements is ensured.
From the specification of geometric tolerances to the selection of suitable measurement methods and on to conformity assessment, the individual standards are interlinked. This structured interconnection minimizes room for interpretation and lays the foundation for reproducible measurement results, high product quality, and standards-compliant quality assurance throughout the entire product life cycle.
The Foundation of the ISO GPS Standards: DIN ISO 8015
DIN ISO 8015 is considered the fundamental base standard for Geometric Product Specification (GPS) and forms the foundation of the entire ISO GPS system. It defines general rules and principles for the interpretation of technical drawings, geometric requirements, and tolerances. In doing so, it establishes a uniform understanding for design, manufacturing, and metrology.
As the overarching GPS standard, DIN ISO 8015 influences numerous other ISO GPS standards and ensures the consistent application of geometric product specifications. Companies benefit from clearly defined requirements, fewer misunderstandings, and greater process reliability in the development, manufacture, and testing of technical products.
An Overview of the most Important Principles
The principles of DIN ISO 8015 form the basis for the uniform application of the ISO-GPS standard system. Among the most important principles are the invocation principle, the independence principle, and the GPS standard hierarchy. They govern how geometric requirements are interpreted and taken into account in the specification and verification of components.
These clearly defined rules ensure that technical drawings and product specifications are understood uniformly worldwide. This improves communication between design, manufacturing, and quality assurance, reduces misinterpretations, and supports reliable conformity assessment. The principles thus make a decisive contribution to product quality, process reliability, and the standards-compliant implementation of geometric requirements.
Briefly summarized: ISO GPS
ISO GPS standardizes geometric product specifications in order to standardize global manufacturing processes. It defines detailed geometric properties and tolerances of products and thus facilitates international communication between manufacturers. Key elements are the matrix model for organizing the standards and the concept of chain links, which emphasizes the interdependence of the standards.
