GC-FID
The GC-FID combines gas chromatography with a flame ionization detector and enables the reliable determination of organic compounds. Due to its high sensitivity and robustness, it is a well-established method for numerous analytical applications.
Table of Contents
- What is a flame ionization detector?
- How is a flame ionization detector constructed?
- How does GC-FID work?
- Advantages and limitations of GC-FID
- GC-FID or GC-MS – which detector is best suited for which application?
- GC-FID analysis at Quality Analysis
- Applications of the GC-FID
- Frequently asked questions about GC-FID
- For short: GC-FID
Contact us –
expert support is just a conversation away.
Using state-of-the-art analytical methods, we assist you with quality issues, damage claims, and development challenges – providing precise, well-founded, and solution-oriented support.
What is a flame ionization detector?
The flame ionization detector (FID) is a sensor used to detect organic compounds, particularly hydrocarbons, that have previously been separated in the gas chromatograph (GC). Although the GC can also be coupled with numerous other detectors or a mass spectrometer (GC-MS), the flame ionization detector is particularly distinguished by a combination of very high sensitivity and good robustness. The FID can also be used without an upstream gas chromatograph, for example, to monitor indoor air as well as industrial and automotive exhaust gases for hydrocarbon concentrations, or to monitor methane emissions, such as at landfills.
How is a flame ionization detector constructed?
The substances separated by gas chromatography are carried by the carrier gas (usually helium) into a knall gas flame, where they are ionized. During ionization, electrons are released and collected by two electrodes to which a DC voltage is applied. For this purpose, either two capacitor plates or a metal grid or ring—which is placed around the flame—is typically used. In the latter configuration, the burner nozzle serves a dual function by also acting as a counter electrode.

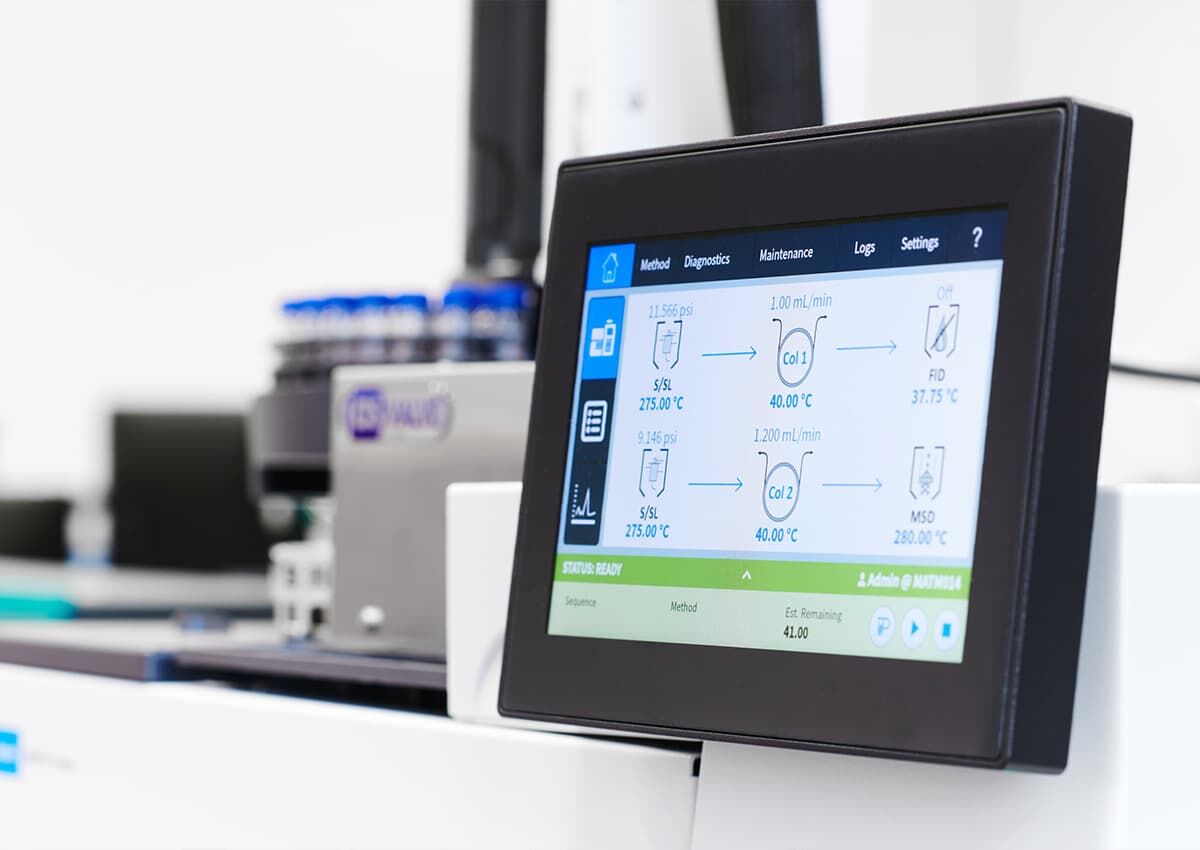

Documentation of GC-FID results
In all electrode configurations used, the captured electrons generate a slight current flow. However, since the current is only in the range of a few picoamperes, it must first be amplified before it can be recorded as a peak in the chromatogram. This method works for all organic (= carbon-containing) substances, but only to a limited extent for those that undergo thermal decomposition in the separation column. Halogenated compounds, nitrogen oxides (NOX), carbon monoxide (CO), and carbon dioxide (CO2) cannot be detected at all.
How does GC-FID work?
Advantages and Limitations of GC-FID
The GC-FID is characterized by high sensitivity, reliable measurement results, and robust measurement technology. At the same time, the method has limitations when it comes to identifying and analyzing certain substances.
Advantages of GC-FID
- High sensitivity to many hydrocarbons
- Wide linear measurement range
- Robust and well-established measurement technology
- Good reproducibility
- Reliable quantitative results
Limitations of GC-FID
- Unknown substances cannot be uniquely identified
- Quantification requires reference substances and calibration
- Not all organic compounds produce signals of equal strength
- Inorganic gases are generally not detected
- The sample must be sufficiently volatile or capable of vaporizing without decomposition
GC-FID or GC-MS – Which Detector Is Best Suited for Which Application?
The GC-FID is particularly well-suited for the sensitive and reliable quantification of known organic compounds.
If, on the other hand, unknown substances need to be identified or complex mixtures of substances need to be characterized more precisely, GC-MS provides additional information about the molecular structure. Which method is most suitable depends on the sample, the expected substance, and the specific research question.

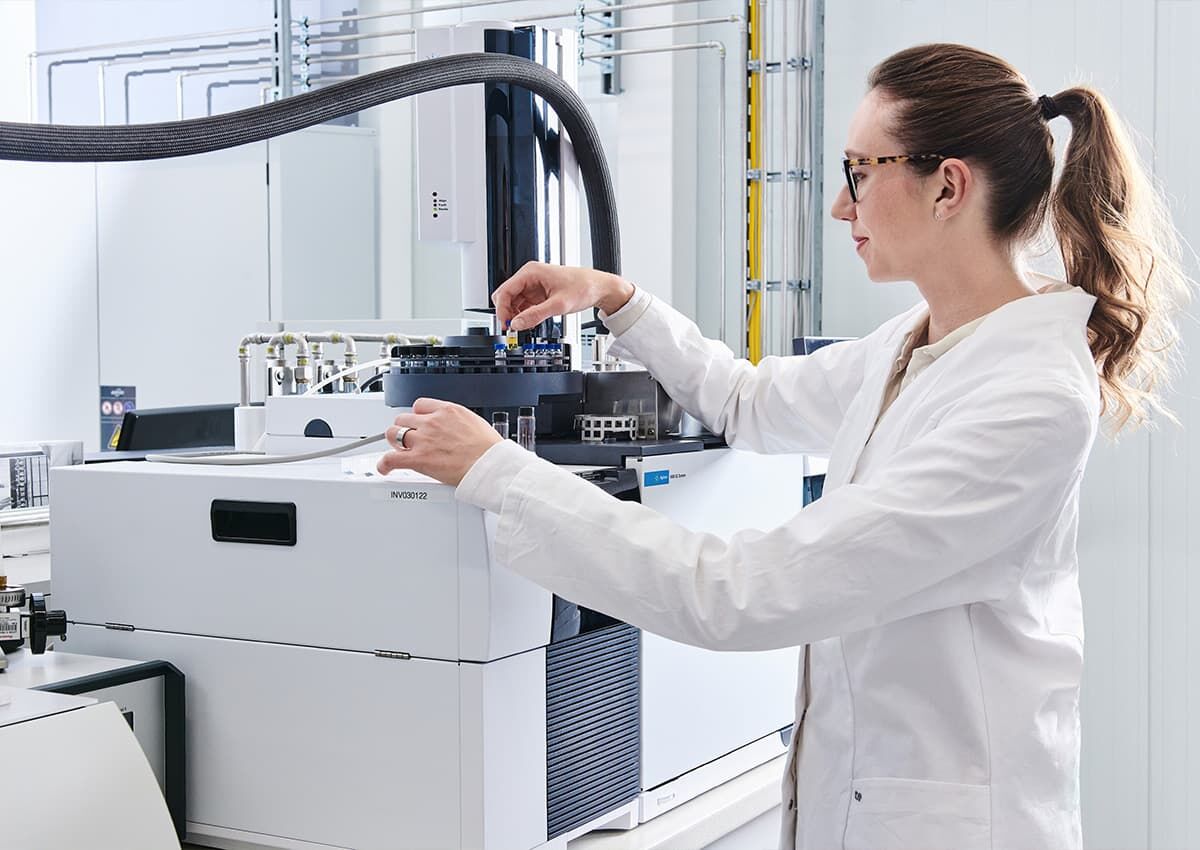

GC-FID Analysis at Quality Analysis
At Quality Analysis, we test plastics and other materials for volatile organic compounds and hydrocarbons. GC-FID is suitable, for example, for determining solvent residues, for the quantitative analysis of specific substances, or for evaluating unusual emissions. Our experts will work with you to select the appropriate sample preparation and testing method. You will receive the results in a clear test report with an evaluation tailored to your specific needs.
Applications of GC-FID
The GC-FID is a well-established method in chemical analysis and plays a role in virtually all fields where the quantitative determination of organic substances is important, such as in pharmaceuticals or plastics analytics. The precise and reliable measurements allow for the determination of most organic substances, even when they are present only in very low concentrations.
Pharmacy
In pharmacy, GC-FID is used in a wide variety of areas. One of its core functions, however, is the analysis of pharmaceuticals for potential impurities. It can also be used to detect the metabolites of administered drugs in samples from patients or test subjects in pharmaceutical research. Another area of application is the determination of blood alcohol concentration.
Chemical Industry
In the chemical industry, GC-FID is an important method for quality control. This is particularly true in the petrochemical industry. For example, fuels are regularly analyzed for their exact composition using flame ionization detectors. In the case of kerosene in particular, the composition has a significant influence on energy conversion.
Food Safety
In the field of food safety, GC-FID is used, on the one hand, to analyze the food itself (e.g., to detect pesticides in agricultural products or hormones in meat), and, on the other hand, it is used to inspect plastic packaging in order to rule out any negative impact of the hydrocarbons it contains on the taste and quality of the food.
Frequently asked questions about GC-FID
GC-FID is particularly effective for the sensitive detection and quantification of many hydrocarbons and other volatile or vaporizable organic compounds.
Reliable identification based solely on the FID signal is usually not possible. GC-MS may be more suitable for analyzing unknown substances.
Samples can be analyzed if their relevant components are sufficiently volatile or can be made accessible for gas chromatography through appropriate sample preparation.
Yes. Suitable reference substances and calibrations are required for reliable quantification.
GC-FID is particularly useful when known organic compounds need to be quantified reliably, sensitively, and cost-effectively.
For short: GC-FID
GC-FID stands for gas chromatography with a flame ionization detector. In this widely used method, organic substances are first separated in a gas chromatograph and then ionized in the flame ionization detector. The resulting electrical signals are displayed as peaks in the chromatogram and enable the quantitative determination of the substances.
